objectives
- eliminate the nitrile rubber backing valconization manufacturing process.
- stop the bleeding of carbon black and glycerin when rubber deteriorate to certain level, which stained the expensive flooring, washing machine and the tumbling dryer’s drum and too hard to remove. Caused claims!
- too much lints come out of the surface fabric pile, have to stop. this mainly by the lossing cotton short fiber.
- current available similar mat in different markets are mostly not machine washable and tumble dry safe. Current available nitril rubber backing deteriorate too fast in mechine washing and tumble dry. Need a material in better mechanical properties and better thermal properties.
see video introduction of the home use version of this entrance mat (There big demand on commercial and rental versions as well.)
After in deepth study we have now converge on fusing the following 2 materials together to finalize a disruptive solution for matting industry.
Developing material 1 : elastomer [ quote: https://en.wikipedia.org/wiki/Elastomer ]
Developing material is an environmentally friendly, low-carbon composite material that has the characteristics of rubber (high elasticity, compression permanent deformation, etc.) and the processing characteristics of plastic (simple process).
| 性能 Properties | 測驗方法 Test Method | 單位 Units | ALCRYN® 2060 NC | |
| 機械性能 Mechanical Properties | ||||
| 比重 Specific Gravity | ASTM D-471 | － | 1.12 | |
| 硬度 Hardness | ASTM D-2240 | Shore A | 59 | |
| 熱性能 Thermal Properties | ||||
| 100% 模量 100% Modulus | － | psi | 440 | |
| 抗拉強度 Tensile Strength | － | psi | 1,150 | |
| 延伸率 Elongation | At break | － | % | 420 |
| 撕裂模量 Torsion Modulus | At 75℉ (24℃) | ASTM D1043 | psi | 340 |
| At -4℉ (-20℃) | 700 | |||
| 回彈性 Compression Set | After 22hr at 24℃ | ASTM D395 | % | 13 |
| After 22hr at 100℃ | 62 | |||
| 耐熱性特質 Tensile Properties After 7 Days At 125℃ | ||||
| 100% 模量 100% Modulus | ASTM D573 | psi | 400 | |
| 抗拉強度 Tensile Strength | ASTM D573 | psi | 950 | |
| 延伸率 Elongation | At break | ASTM D573 | % | 340 |
| 硬度 Hardness | ASTM D573 | Shore A | 60 | |
| 使用溫度 Service Temperature | － | ℃ | -40 － 107 | |
| 低溫下特點 Low Temperature Properties | ||||
| 脆點 Brittleness Temperature | － | ℃ | -85 | |
上列數據仕僅供參考，並不為此承擔任何責任和保證。
The data are intended as a general guide only, makes no guarantee of results and assumes no obligation or liability.

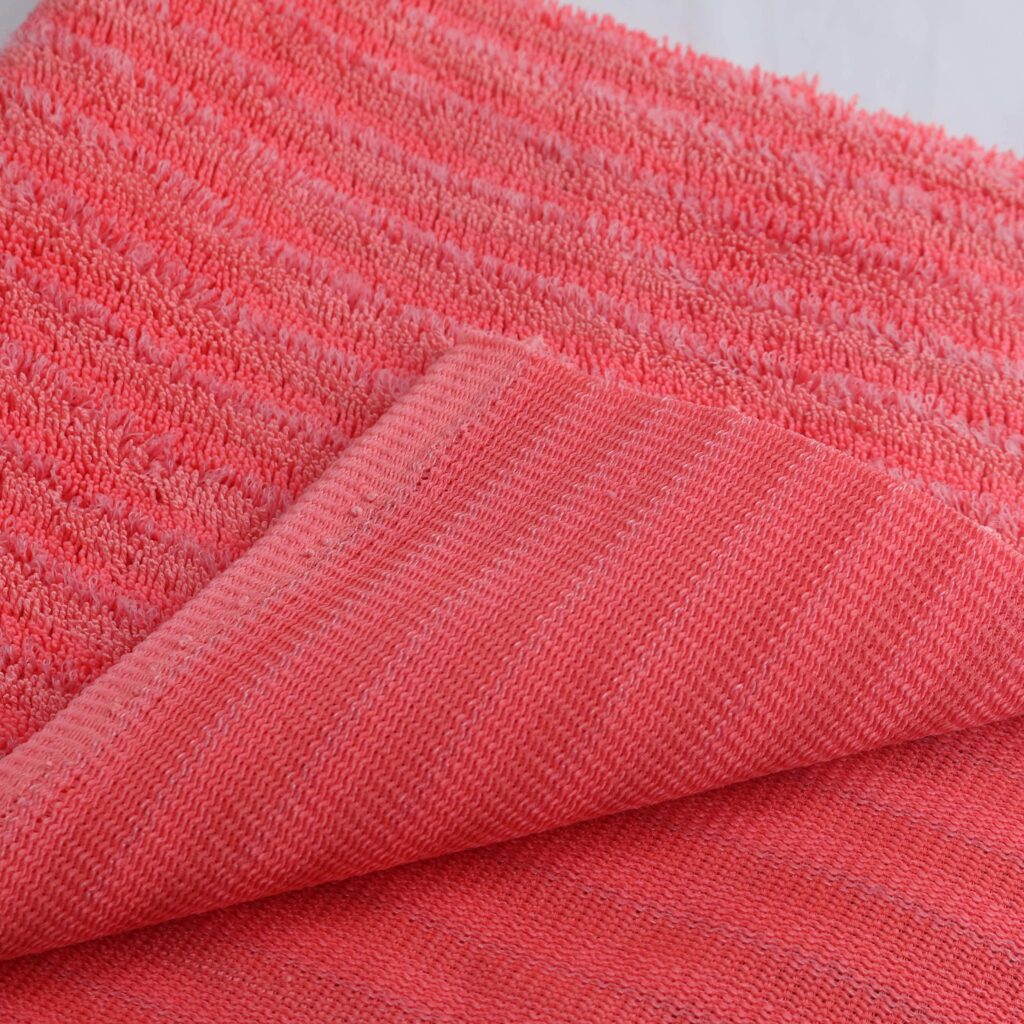

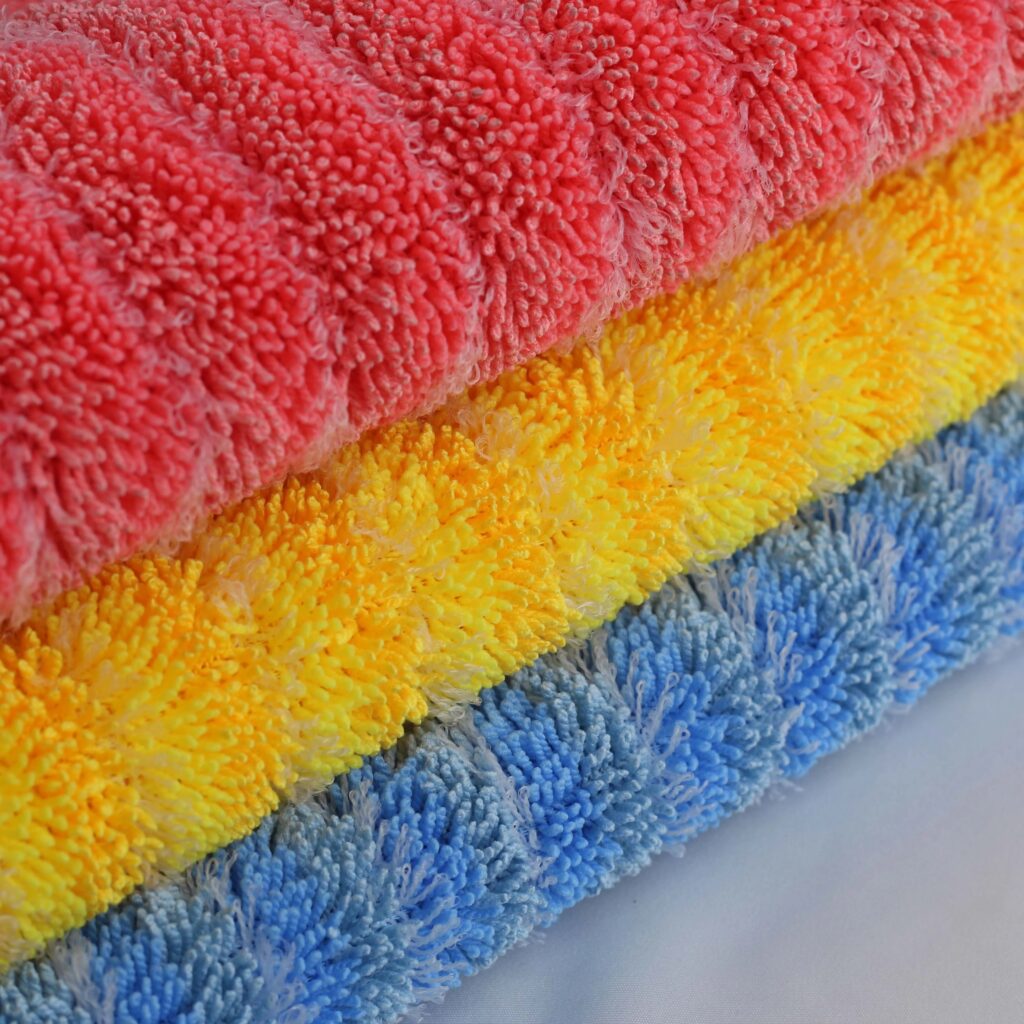

Developing material 2 : Microfiber Magic Flat Mop Scrubber Twist Pile New Multipurpose Wet And Dry For Floor Cleaning – Miracle Pile
